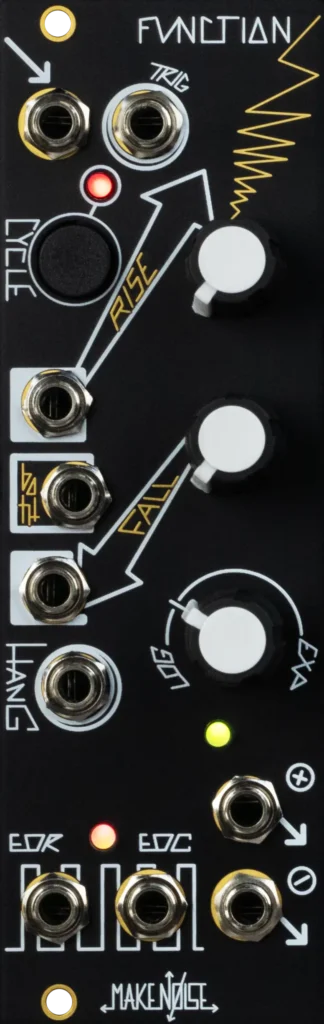

FUNCTION


The FUNCTION music synthesizer module is part of the MATHS family of control voltage utility modules. It is a small analog computer designed for solely musical purposes.

FEATURES
  • Generate a variety of linear, logarithmic, or exponential functions
  • Functions as short as 2ms and as long as 25 minutes per cycle!
  • Triggered Functions (Envelope)
  • Continuous Functions (LFO)
  • Invert and/ or Integrate (Lag, Slew, Portamento)
  • Discrete Time Functions (S&H, T&H)
  • LEDs indicate activity on all outputs
  • End of Rise and End of Cycle Pulses facilitate programming of more complex functions
  • All outputs capable of driving a passive 4 way mult without loading effects (no buffered mult needed here)
  • Perfect for modulating the DPO and just about anything else

SPECIFICATIONS
  • Width: 8hp
  • Max Depth
    (incl. power cable): 32mm
  • Power:
    30mA@ +12V
    20mA @ -12V
