PrssPnt

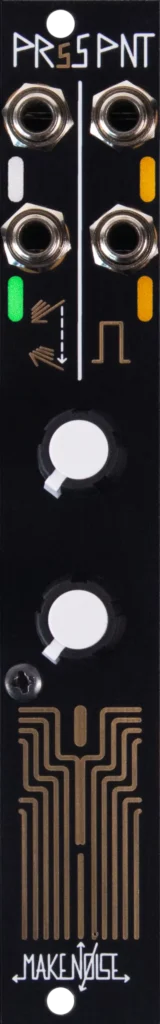

The PrssPnt music synthesizer module is a controller in which several signals are generated by touching the printed copper wire at the bottom of the instrument.  Touching PrssPnt, you become part of the circuit, generating a total of four simultaneous signals (two CV, two Gate).

The basic function of PrssPnt will be familiar to anyone who has used Pressure Points or 0-CTRL. It could be seen as a single “souped-up” channel of one of these devices. Since it is a single channel, the tuned voltage outputs are not relevant, and instead are replaced with more playable sensitivity controls and alternate pressure and gate outputs.

FEATURES
  • Momentary Gate output remains high as long as it is being pressed
  • Toggled Gate output goes high and low with each successive press of the plate: press it to make it go high, press it again to make it go low
  • Pressure output generates a positive control signal proportional to the amount of Pressure applied, further tailored by the Sensitivity Panel Control
  • Smooth Touch Function recreates the useful patch of sending a Pressure Output through a carefully tuned slew limiter for extended function generation
  • Turning up the Slew amount will allow for larger than life functions with very long decay to be generated by hand.
  • All four outputs available simultaneously

SPECIFICATIONS
  • Width: 4hp
  • Max Depth
    (incl. power cable): 30mm
  • Power:
    14mA @+12V
    0mA @-12V
  • MSRP: $89
