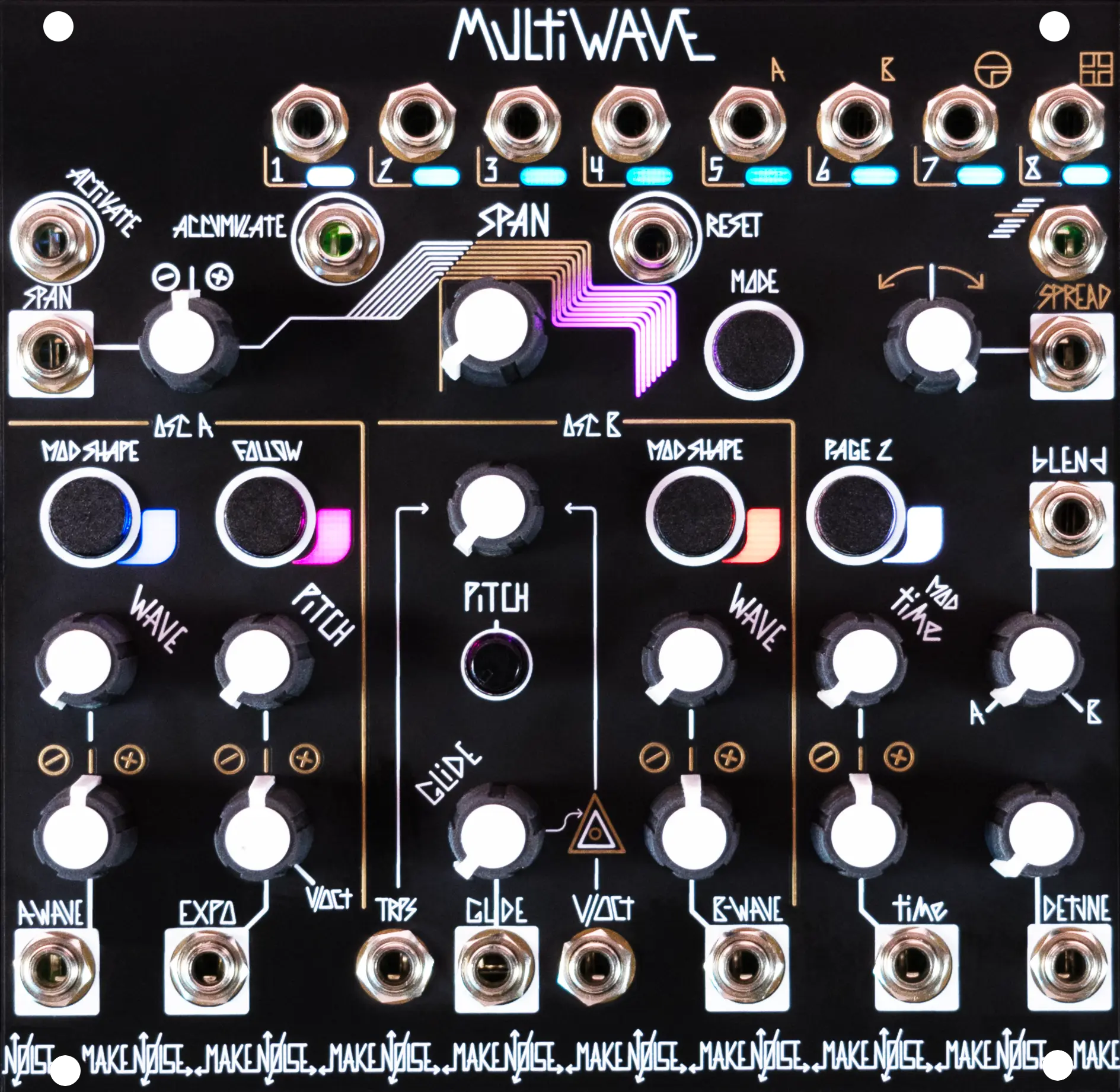

MultiWAVE

MultiWAVE is an 8-channel dual wavetable oscillator for the New Universal Synthesizer System or any Eurorack modular synthesizer. It uses a single set of controls to generate audio waveforms at eight independent channel outputs.

Each of the eight MultiWAVE channels contains two independent wavetable oscillators, Osc A and Osc B, each loading its own wavetable with variable frequency, modulation, and wavetable position.

MultiWAVE includes an output header for creating pre-patched connections to the audio signal inputs of two QXG modules. When grouped up with PoliMATHS it creates the 8-channel core of the New Universal Synthesizer System.

FEATURES
  • 8-channel dual wavetable oscillator with a single set of controls
    • Sequence A and B oscillators (per channel) independently or together via 4 Follow modes
    • Generate polyphonic activations from monophonic sequences using Modulation Dissemination, Span modes, Spread, and Accumulate.
    • Variable timbre per channel via Spread and Modulation Dissemination
    • Independent v/o inputs per oscillator and global transpose v/o input
    • Built-in polyphonic quantizer
    • Modulatable polyphonic detune, and glide.
    • Works as a Harmonic Oscillator with detune turned fully clock wise
  • Modulate wavetables using built-in MultiMod LFO
    • Independent modulation depth and shape per oscillator.
    • Modulation Time and depth variable per voice via spread and modulation dissemination
  • Ships with custom Make Noise wavetables developed from Make Noise modules
    • Smooth interpolation between waveforms
    • Compatible with Waveedit format wavetables
    • Each wavetable contains 64 waves
    • Capable of storing 8 banks of 8 wavetables.
    • Activate channels in multiple voltage-controllable Span modes
      • In arbitrary order using Channel Index
      • Sequentially with variable channel count step in Round
      • Via variable per channel clock divisions using Parallel
    • Oscillator Core of the New Universal Synthesizer System
      • Designed for seamless use with PoliMATHS, QXG, and future N.U.S.S. modules
      • Chain to pair of QXG for immediate 8-channel mixing, with amplitude control via PoliMATHS for 8-channel modular hybrid Polysynth.
    SPECIFICATIONS
    • Width: 26hp
    • Max Depth
      (incl. power cable): 43mm
    • Power:
      250mA @+12V
      5mA @-12V
    • MSRP: $529
    MANUALS

    MultiWAVE Manual

    MultiWAVE Manual (PDF)
