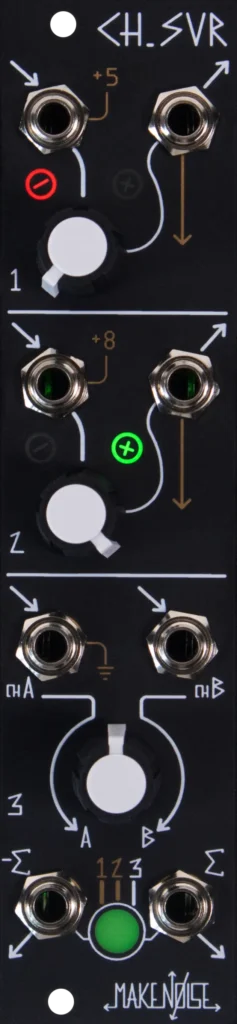

The Ch.Svr music synthesizer module is a small utility module, offering several channels of signal-processing that will be useful in just about any modular system. As a condensation/extension of the sum/offset/attenuversion aspects of MATHS, it continues the great tradition of sculpting the control signals we use to sculpt our sound signals.

  • Scale, amplify, attenuate, or invert an incoming signal using Channels 1 or 2
  • Generate DC offsets when Channel 1 or 2 is unpatched
  • Crossfade between two signals, or attenuate one signal, using Channel 3
  • SUM and INVerted Sum Bus for addition, subtraction, mirroring, inversion etc.
  • Individual Channel Outputs for Channels 1 and 2 allow independent use of all three channels
  • Anywhere you need more subtle modulation, Ch.Svr is there for you… now all your eurorack slivers may have subtle and intentional modulation they deserve!

  • Width: 6hp
  • Max Depth
    (incl. power cable): 30mm
  • Power:
    20mA @+12V
    10mA @-12V
  • MSRP: $99
