QMMG

We tried really hard to make a run of QMMG in 2019, but the parts that arrived weren’t what we wanted, and we haven’t been able to identify good old stock to finish this run. We are still working on a solution, and will post an update here when we have news. Please note that shops were never given the ok to take orders because we didn’t yet have these in production.

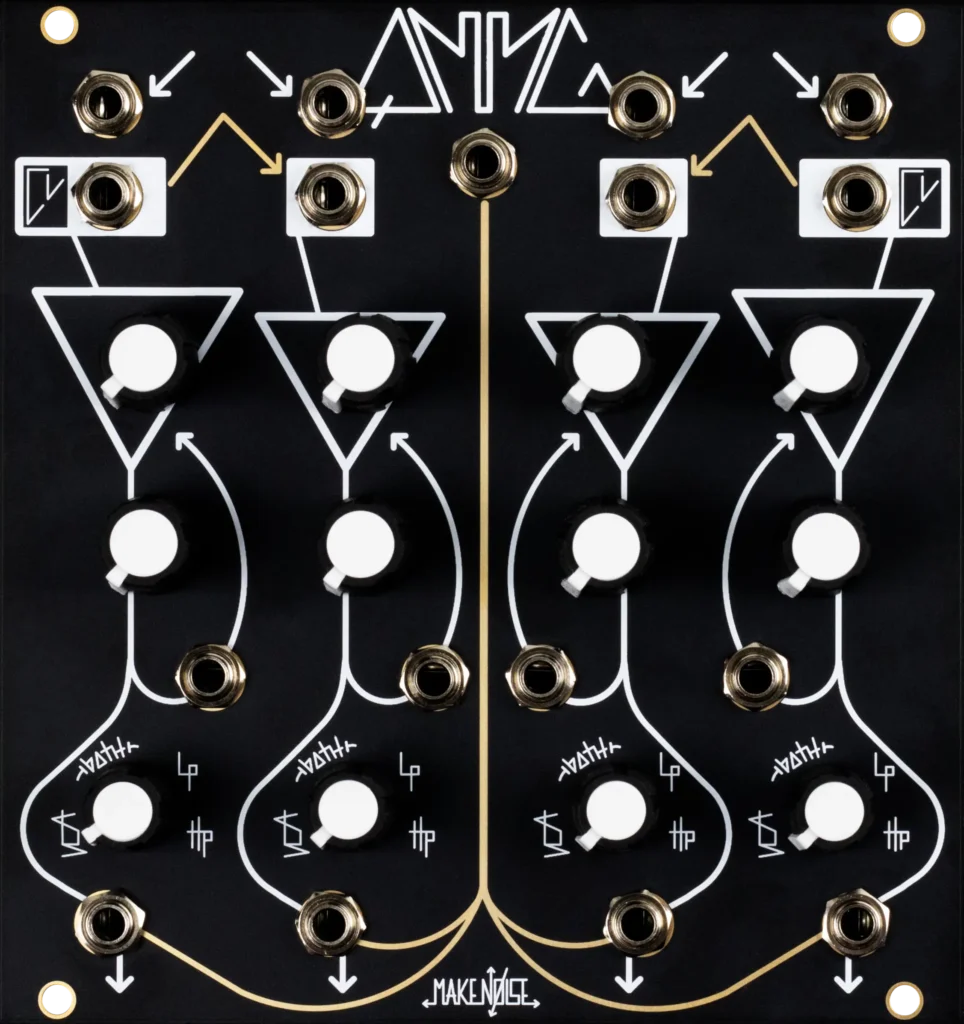

The Quad Multi-Mode Gate music synthesizer module is a huge riff on the original Buchla 292 Quad Lo-Pass Gate, including a Mix Out and all of the original feature set. The QMMG offers additionally: HiPass mode, Voltage Controlled Feedback, Direct Coupling and Normalizations so that multiple channels may easily be used together to create Bandpass Gates, steeper HP, BP or LP Filters or even something like a traditional Synthesizer Voice Architecture.
The QMMG contains no fewer than 8 Vactrols!

The 2018 black and gold reissue of the QMMG is functionally identical to the original. The Top board was re-engineered to use analog pots for mode selection instead of analog switches. The only change to the bottom board is the addition of reverse power protection. The signal path and circuit have not changed.

specifications

  • Width: 24hp
  • Max Depth: 32
  • Power:
    65mA @ +12V
    65mA @ -12V
  • manual:
  • qmmgmanual2018.pdf
  • MSRP: $649 + shipping

features

  • 2018 Black and Gold Edition

  • Vintage voiced, all analog

  • Four independent vactrol-based channels

  • Multiple modes per channel: VCA, Low-Pass Gate, Low-Pass Filter, or High-Pass Filter

  • SUM out for easy mixing

  • Flexible normalizations for easy creation of dual-peak filters, East Coast voices and more

  • Powerful feedback circuit acts differently depending on mode

  • Pairs well with MATHS and DPO
